Public Address Systems - IP/Network Based
Sounders, Microphones and Visual Alarms IP/Network Based PA Systems
Advantages of IP technology
Simple installation:
Use of the existing computer network
POE supply:
Simple cabling
Quick and easy configuration of equipment via Bodet's Sigma software

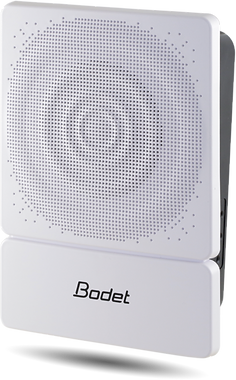

Indoor Wall-Mounted Harmonys - IP/POE Speaker
IP/POE PA Speakers
The range of Harmonys Sounders emits programmed or manually-controlled bell sounds, public announcements and audio streams which are sent from a computer.
-
The sounders are controlled by a Bodet Sigma master clock.
-
Stores up to 30 MP3 bell sounds.
-
18 pre-installed bell sounds.
-
Associated with a zone.
-
8 volume levels.
Technical features
-
Power supply - PoE (Power over Ethernet).
-
Output level - 90 dB.
-
Protection index - IP31.
-
Dimensions - H230 x W163 x D80 / 50mm.
-
Power - 13W.
Indoor Ceiling-Mounted Harmonys - IP/POE Speaker
IP/POE PA Speakers
The ceiling-mounted sounder has a discreet design and sound quality suitable for programmed melodies, class change bells, public announcements and audio streams (WebRadio and WebMusic) in schools.
-
The sounders are controlled by a Bodet Sigma master clock.
-
Stores up to 30 MP3 bell sounds.
-
18 pre-installed bell sounds.
-
Associated with a zone.
-
8 volume levels.
Technical features
-
Power supply: PoE (Power over Ethernet).
-
Output level: 90 dB.
-
Protection index: IP31.
-
Dimensions: H175 x W175 x D67mm.
-
Power: 13W.
Outdoor Harmonys - IP Sounder
IP Network Sounder
The Harmonys outdoor sounder has a protection index of IP 54 and operates at temperatures of between -20° and +55°C. This sounder is perfectly designed for outdoor school playgrounds.
-
The sounders are controlled by a Bodet Sigma master clock.
-
Stores up to 30 MP3 bell sounds.
-
18 pre-installed bell sounds.
-
Associated with a zone.
-
8 volume levels.
-
Version with 2 speakers available.
Technical features
-
Power supply: 110-240VAC.
-
Output level: 110 dB.
-
Protection index: IP54.
-
Dimensions HP: H254 x Ø203 mm.
Dimensions controller: H195 x W250 x D97,5 mm. -
Power: 13W.
Harmonys Control Box - Manual Activation Of Bell Sounds
Harmonys Control Box
The control box is used for the manual activation of bell sounds and emergency procedure alerts.
-
STOP function: manual stoppage of the tune during reading in one or more zones.
-
Button action configurable using SIGMA software in automatic mode or SIGMA.
-
Onboard Web server to access product configuration and identifications.
-
Possibility of adding an extension box with 4 additional buttons.
Technical features
-
Power supply: PoE (Power over Ethernet).
-
Protection index: IP41.
-
Dimensions: H88 x W167 x D50mm.
-
Power: 2W.
Harmonys Microphone - General Call Over IP
Harmonys Microphone
The Harmonys microphone can be used to broadcast live or recorded announcements throughout a site or within a specific zone. With a capacitive keyboard the microphone offers a practical and ergonomic design.
-
Screen to view the name of calling areas.
-
Speaker to play back messages.
-
2 models: 8 or Multizone.
-
3 function buttons to record, broadcast live messages and broadcast recorded messages.
-
Configurable jingle played before the spoken message.
Technical features
-
Power supply: PoE (Power over Ethernet).
-
Output level: 58 dB.
-
Protection index: IP31.
-
Dimensions: H34/23 x W198 x D167mm.
-
Power: 8W.
